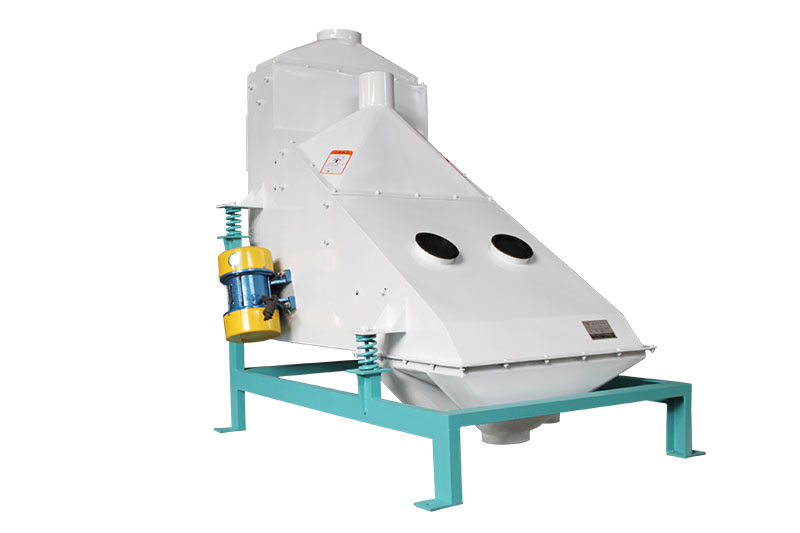

SFJZ series vibrating grading sieve

SFJZ series vibrating grading sieve

Performance characteristics

    It is suitable for the last process of granulation section of small and medium-sized feed mill, after granulation or crushing of the particles through the screening method, extract qualified grain feed products, remove unqualified particles and powder, and return to the granulator to granulate.

With a compact structure ,convenient operation and maintenance, low power consumption, low noise, good sealing, no pollution and so on.

Can be widely used in feed, food, chemical and other industries on the initial cleaning and screening materials.





Main technical and performance indicators

Technical    Item            Parameters		SFJZ80×2	SFJZ100×2
Output t/h		1-5	5-10
Power kw		0.25×2	0.25×2
Vibration frequency times /min		920	920
Vibration force range N		0-3000	0-5000
Amplitudemm		2.5-4	2.5-4
Screen size（mm)	Upper sieve	630×1220	1000×1590
	Under sieve	630×1050	1000×1350
Sieve angle		30°	30°
Surface layers number		2 layer	2 layer
Suction volume m³/min		5	10
Dimensions（a×b×c)mm		1750×1300×1750	2030×1400×2000
Machine weight kg		350	430























































本宣传册中所有涉及的产品外形、设备颜色、技术参数，如有变动，公司保留最终解释权

All the technical parameters involved in product appearance, color equipment, brochure, if there is a change, and the company reserves the right of final interpretation.
