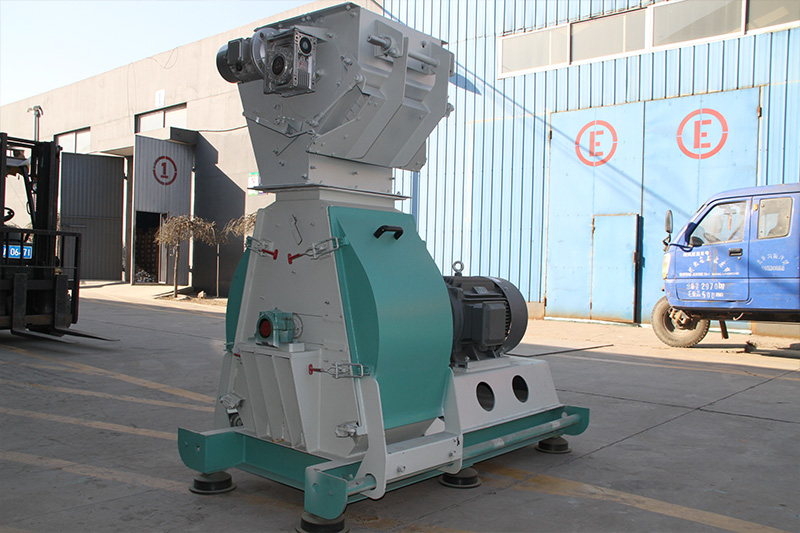

SFSP60 Series 60×45 Water Drop Hammer Mill

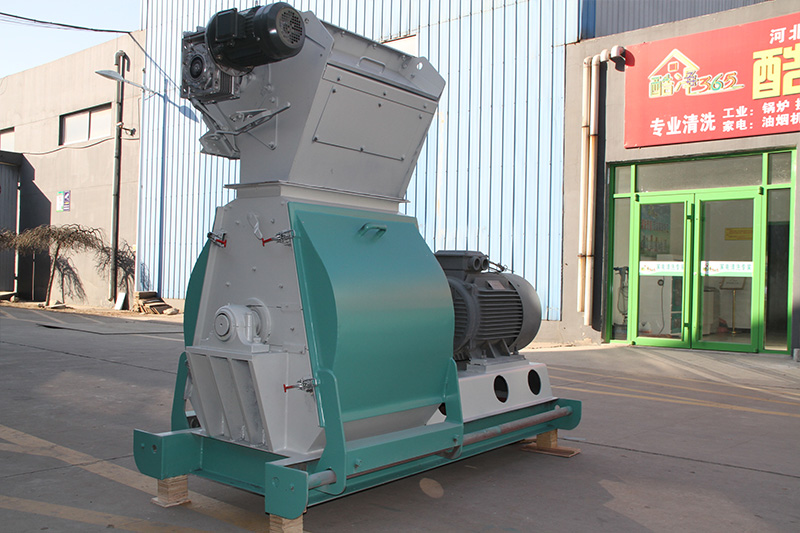

SFSP60 Series 60×75 Water Drop Hammer Mill
Performance characteristics
Widely used in large-scale feed mill, food factory, farm and other industries.
Suitable for crushing all kinds of granular raw materials, such as: corn, sorghum, wheat, beans, wood chips, etc., is the ideal general-purpose hammer mill.
Rotor after a high precision dynamic balance test, low vibration, long life.
The hammer piece, the screen mesh and the pin shaft have long service life and high grinding efficiency after the special heat treatment.
Operation door with self-locking device, convenient and flexible, safe and reliable.
This series hammer crusher’s main technical and performance indicators under the correctly installed ,good suction, use of normal circumstances.
|
Model |
Total Power(kw) |
Outputs(t/h) |
Floor Area(m) (L×W×H) |
|
SFSP60×45 |
45 |
6-9 |
1.85×0.95×1.24 |
|
SFSP60×75 |
55 |
8-12 |
2.3×0.95×1.24 |
|
SFSP60×75 |
75 |
10-15 |
2.3×0.95×1.24 |
