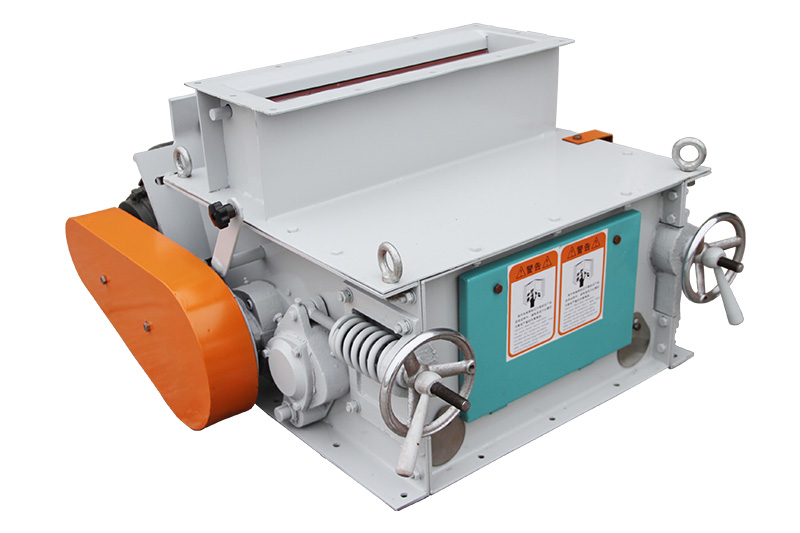

SSLG15×50 Tripple-roll Grinder

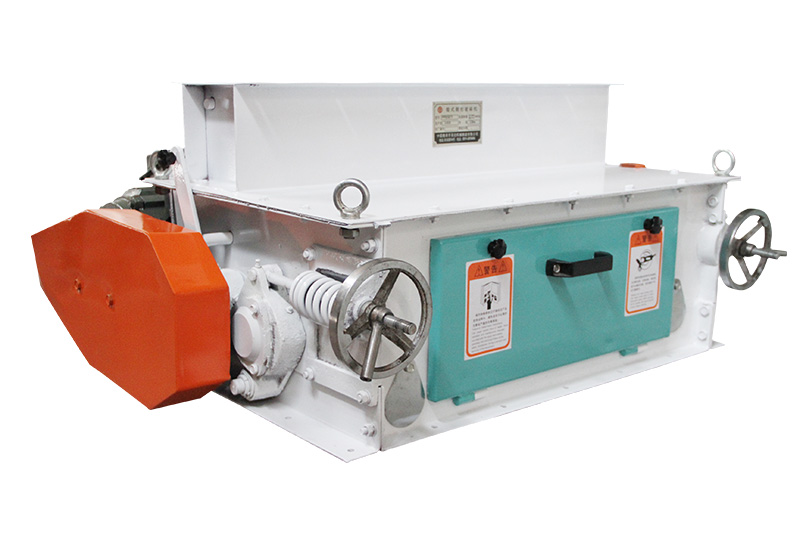

SSLG15×80 Tripple-roll Grinder

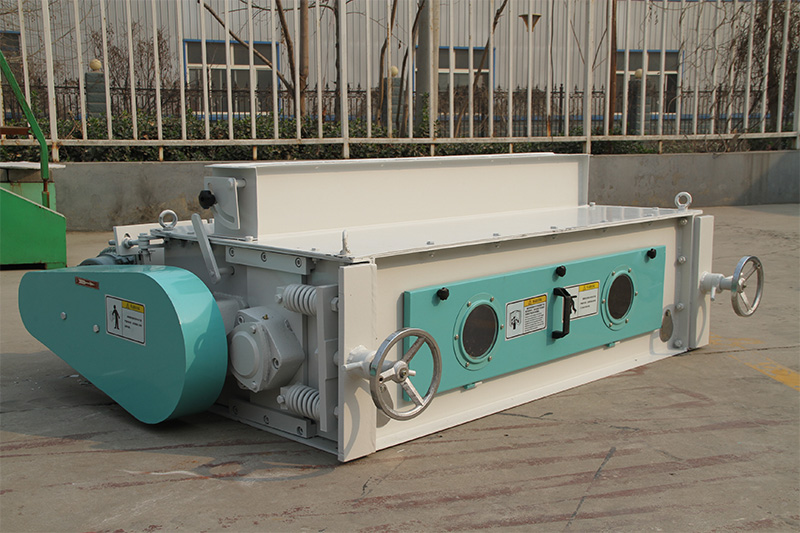

SSLG22×130 Tripple-roll Grinder
Performance characteristics
It is suitable for crushing large particles into small particles, and can be used to break the particles of various specifications into 0.6-1.5MM or 1-2.5mm particles.
Two-roll or three-roll structure, uniformly broken , easy to adjust particle size.
The unique feeding port and the bypass device not only play the role of uniform, but also play a role in the side of the flow of materials do not need to be broken, bypass flow through the switch to achieve automatic shutdown.
The use of narrow V high-intensity V-belt drive, smooth rotation, reliable, easy to operate
Main technical parameters and performance parameters
|
Model Item |
SSLG15×50 |
SSLG15×80 |
SSLG15×100 |
SSLG15×150 |
SSLG20×170 |
|
Roll size(mm) |
Φ150×500 |
Φ150×800 |
Φ150×1000 |
Φ150×1500 |
Φ200×1700 |
|
Fast roll speed（r/min） |
725 |
560 |
|||
|
Slow roll speed（r/min） |
475 |
392 |
|||
|
Output（t/h） |
1-2 |
2～4 |
3～6 |
5～10 |
10～20 |
|
Power（KW） |
4 |
4 |
5.5 |
7.5/11 |
11/15 |
All the technical parameters involved in product appearance, color equipment, brochure, if there is a change, and the company reserves the right of final interpretation.
