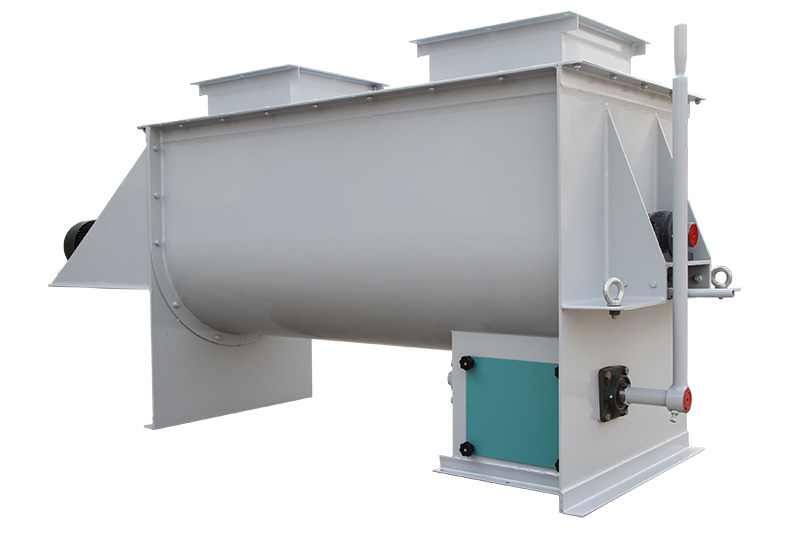

HJJ71 Spiral Belt Mixer

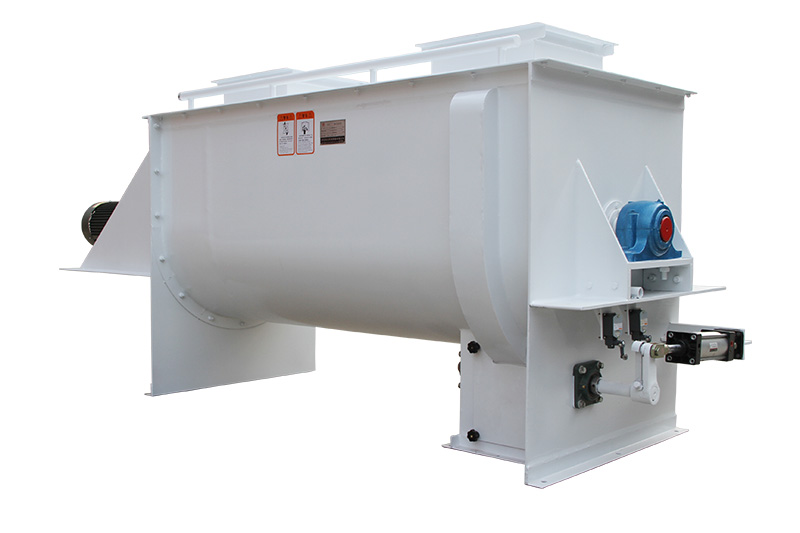

HJJ80 Spiral Belt Mixer
Features
Applicable to mix variety powdered feed or concentrated feed.
Special design of the discharge mechanism, large open Angle, discharge rapidly , quick discharging and less residue.
Double helix ribbon mixer, mixing without dead Angle, short Short mixing term.
Could be equipped with pipe for adding liquid grease.
Pneumatic or manual door opening mechanism, convenient and reliable.
Novel rotor structure, the gap between the rotor and the casing can be adjusted to close to zero.
Main technical and performance indicators
|
model parameter |
HJJ50 |
HJJ71 |
HJJ80 |
HJJ100 |
|
m³Effective volume （m3） |
0.2 |
0.5 |
1.0 |
2.0 |
|
Mixing volume/lot (kg) |
120 |
250 |
500 |
1000 |
|
Mixed evenness (cv%) |
≤6 |
≤6 |
≤6 |
≤6 |
|
Mixing time (min) |
3-5 |
3-5 |
3-5 |
3-5 |
|
Spindle speed( r/min) |
54 |
42 |
34 |
34 |
|
Supporting power (Kw) |
2.2 |
4 |
5.5 |
18.5 |
|
Weight (Kg) |
288 |
478 |
766 |
1600 |
|
Dimensions (m) |
1.55×0.9×1.1 |
2×1.22×1.15 |
2.6×1.1×1.4 |
3.1×1..8×1.61 |
All the technical parameters involved in product appearance, color equipment, brochure, if there is a change, and the company reserves the right of final interpretation.
