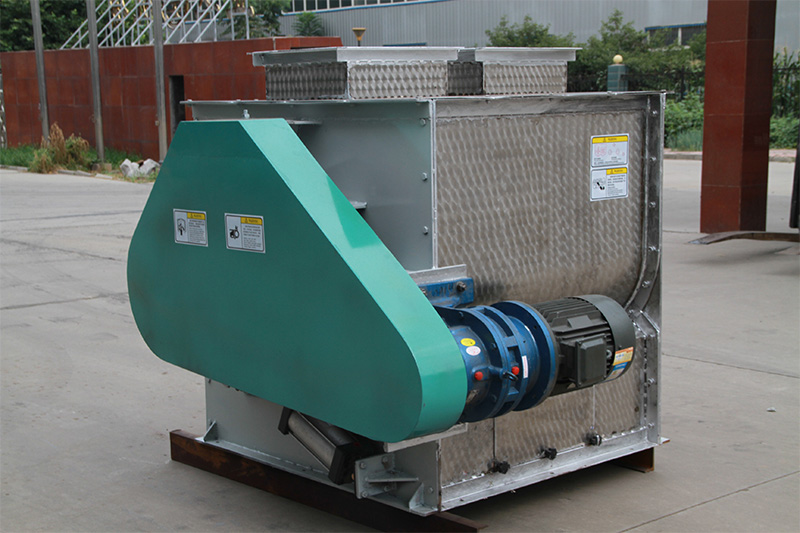

SSHJ0.5 Double Shaft High Efficiencyh Mixer

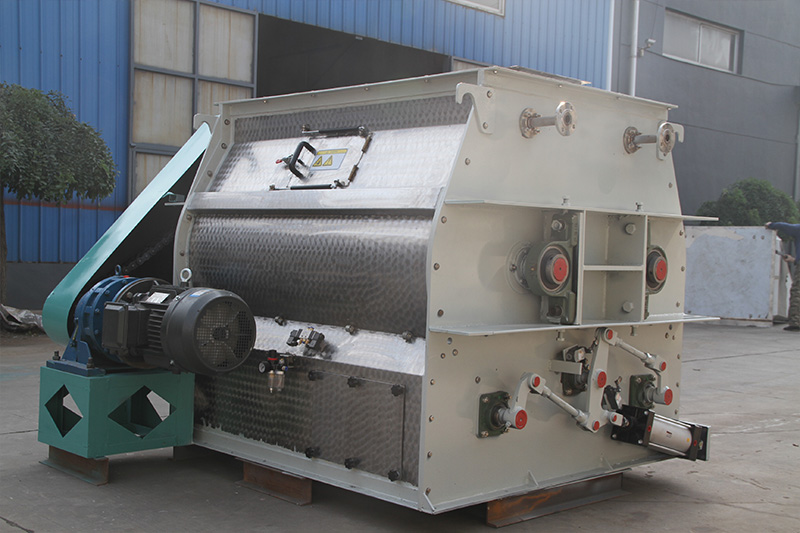

SSHJ1.0 Double Shaft High Efficiencyh Mixer

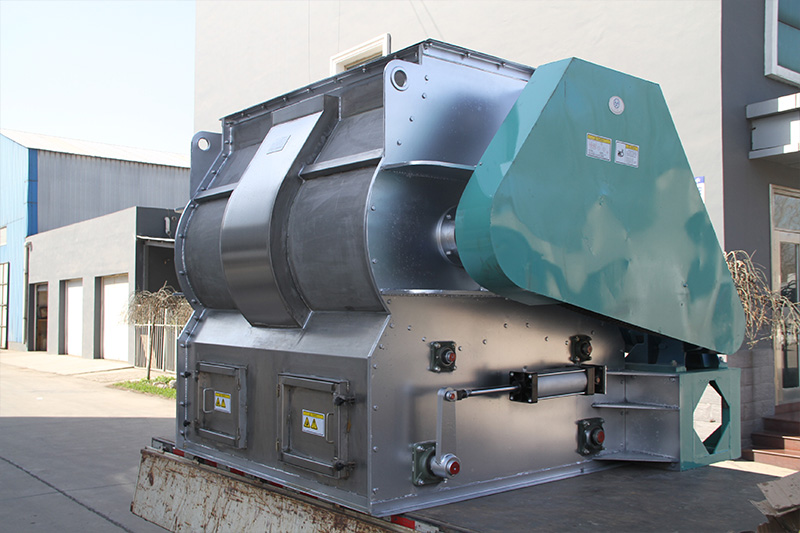

SSHJ2.0 Double Shaft High Efficiencyh Mixer

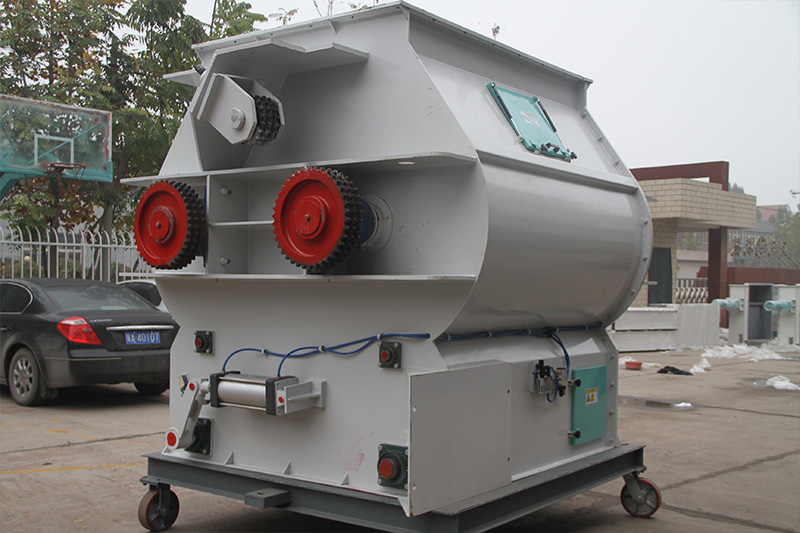

SSHJ4.0 Double Shaft High Efficiencyh Mixer
Performance characteristics
Widely used in feed, grain, food, pesticide, medicine, chemical and other industries in the powder, granular, flaky, massive, miscellaneous and viscous material mixture.
The rotor adopts double shaft and multi blade mechanism, which has high mixing speed and high uniformity.
Effective mixing chamber increases, can be suitable for a variety of light, heavy material mixture.
The top of the cavity is designed to increase the number of liquid oil pipeline, to meet the needs of customers a variety of liquids, and to ensure that the liquid atomization and material to increase the height, improve the mixing effect of liquid atomization, to prevent the knot.
Specially designed discharge mechanism, the bottom of the air to open the door, nesting quickly. No residue. Sealed, to ensure that no leakage material.
Configuration compressed air injection system according to customer’s demand.
Main technical and performance indicators
|
Item
Model |
Effective Capacity m³ |
Mixing amount kg |
Mixing time min |
Mixing homogeneity Cv≦% |
Power |
|
SJHJ0.2 |
0.2 |
120 |
4-120 |
5 |
2.2 |
|
SJHJ0.5 |
0.5 |
250 |
4-120 |
5 |
5.5 |
|
SJHJ1 |
1 |
500 |
4-120 |
5 |
11 |
|
SJHJ2 |
2 |
1000 |
4-120 |
5 |
18.5 |
|
SJHJ4 |
4 |
2000 |
4-120 |
5 |
30 |
|
SJHJ7 |
7 |
3000 |
4-120 |
5 |
37 |
|
SJHJ8 |
8 |
4000 |
4-120 |
5 |
45 |
All the technical parameters involved in product appearance, color equipment, brochure, if there is a change, and the company reserves the right of final interpretation.
